OIL ROTARY VACUUM PUMP ADVAVAC SERIES.

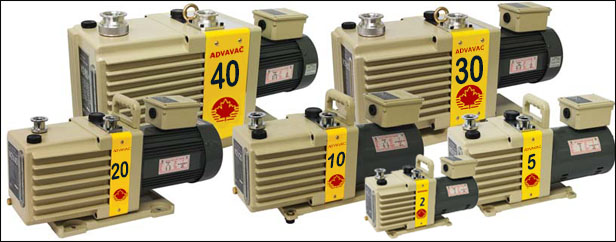

ADVAVAC Series - Vacuum oil rotary pumps

Extra small and light weight.
ADVAVAC Series have a compact design. Easy to carry and set up.

Extremely quiet.
Precise machining eliminates noise and vibration levels well below those of competitors.

Easy to maintain.
Simple structure of ADVAVAC Series helps customer to maintain by self easily. Two kind of repair kits are supported for maintain.

Best Reliability.
‘Stability and Reliability' is the key feature of ADVAVAC Series. All pumps of ADVAVAC Series have CE Certification.

Specification of rotary-vane pumps ADVAVAC Series.

Rotary-vane pumps ADVAVAC Series Pumping Speed Ultimate pressure with Gas Ballast Closed Ultimate pressure with Gas Ballast Open Oil Capacity Weight Inlet Outlet
m³/h l/min l/s Torr Pa
Torr Pa l kg NW or Ф* NW or Ф*

rotary-vane pump
ADVAVAC 2
2,4 40 0.7 3x10^-3 0.4 3x10^-2 4.0 0.2 14 NW16 NW16

rotary-vane pump

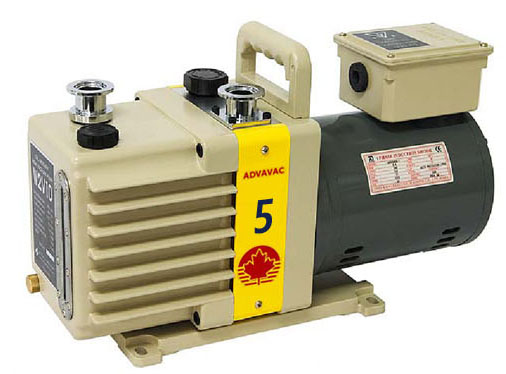

ADVAVAC 5
5 83 1.4 ≤ 1x10^-3 1.3x10^-1 5x10^-2 6.7 0.5 24 NW25 или Ф26 NW25 или Ф26

rotary-vane pump

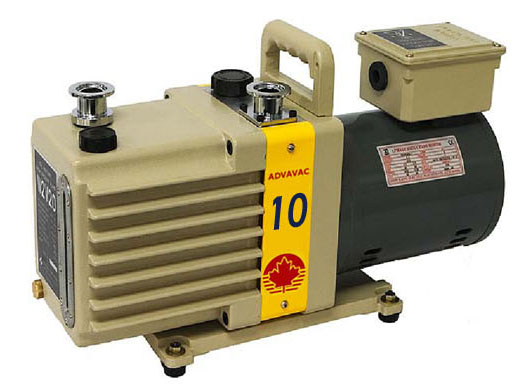

ADVAVAC 10
10 166 2.8 ≤ 1x10^-3 1.3x10^-1 5x10^-2 6.7 0.5 24 NW25 или Ф26 NW25 или Ф26

rotary-vane pump

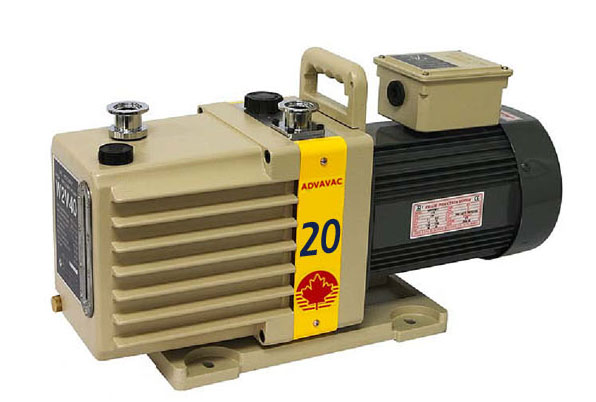

ADVAVAC 20
20 333 5.6 ≤ 1x10^-3 1.3x10^-1 5x10^-2 6.7 1.5 34 NW25 или Ф26 NW25 или Ф26

rotary-vane pump

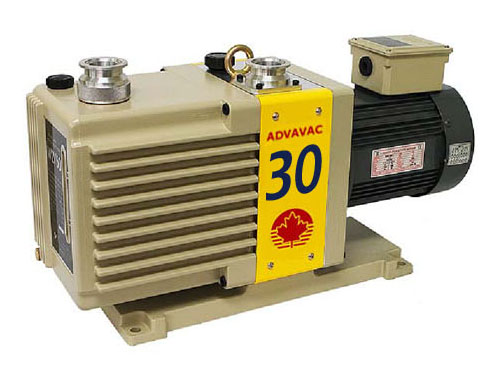

ADVAVAC 30
30 500 8.3 ≤ 1x10^-3 1.3x10^-1 5x10^-2 6.7 2.3 60 NW40 или Ф36 NW40 или Ф36

rotary-vane pump

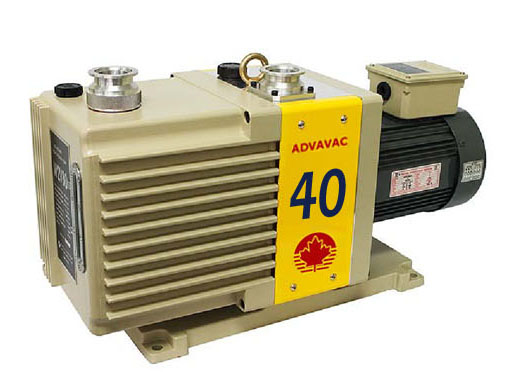

ADVAVAC 40
40 666 11.1 ≤ 1x10^-3 1.3x10^-1 5x10^-2 6.7 2.7 67 NW40 или Ф36 NW40 или Ф36

rotary-vane pump

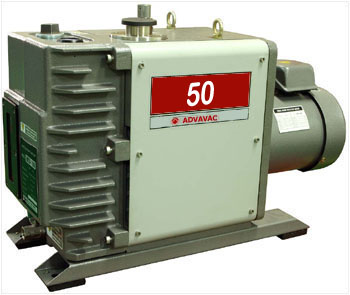

ADVAVAC 50
50 835 13.9 ≤ 1x10^-3 1.3x10^-1 5x10^-2 6.7 4.5 80 NW40 или Ф36 NW40 или Ф36

rotary-vane pump

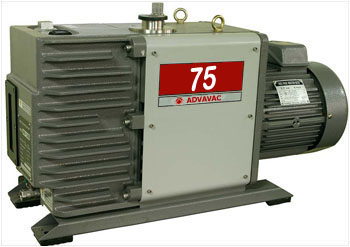

ADVAVAC 75
75 1250 20.8 ≤ 1x10^-3 1.3x10^-1 5x10^-2 6.7 6.2 110 NW40 или Ф36 NW40 или Ф36

rotary-vane pump

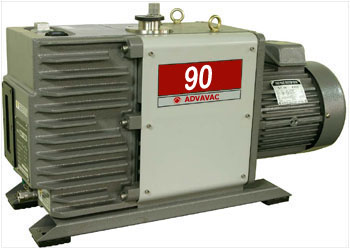

ADVAVAC 90
90 1500 25 ≤ 1x10^-3 1.3x10^-1 5x10^-2 6.7 6.2 120 NW40 или Ф36 NW40 или Ф36

rotary-vane pump

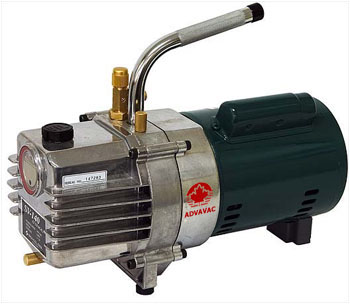

ADVAVAC 7SR
7 117 2 5x10^-3 6,7x10^-1 5x10^-2 6.7 0.5 21 1/4" and 3/8" T-type
or Cross Type 1/4" and 3/8" T-type
or Cross Type

Applicable areas of Rotary Vane Pumps ADVAVAC series:

Chemical, science experiment, Analyzer and Laser system
Semiconductor equipment, Sputtering equipment and vacuum evaporation
Backing pumps for the electronic microscope
Vacuum dryer and Freeze dryer
Lamps and tubes manufacture and Display manufacture
